SKU: TN1000.1

TERMINATOR 1000-Watt RMS 1Ω Mono Block Class D Amplifier

Availability: In stock
$359.95 MSRP
$329.95

Powerful Bass Without Losing Space

The TERMINATOR TN1000.1 Mono Channel amplifier features true RMS power in a newly made chassis redesigned to fit the tightest locations. The Class D topology increases efficiency and reduces heat delivering maximum output to your subwoofers. State-of-the-art circuit protection will keep your amplifier safe and let you know the first sign of trouble. With integrated adjustment circuits, you will be able to tune the audio the way you want, and the remote bass control gives you immediate control anywhere.

Ask an expert Find a location

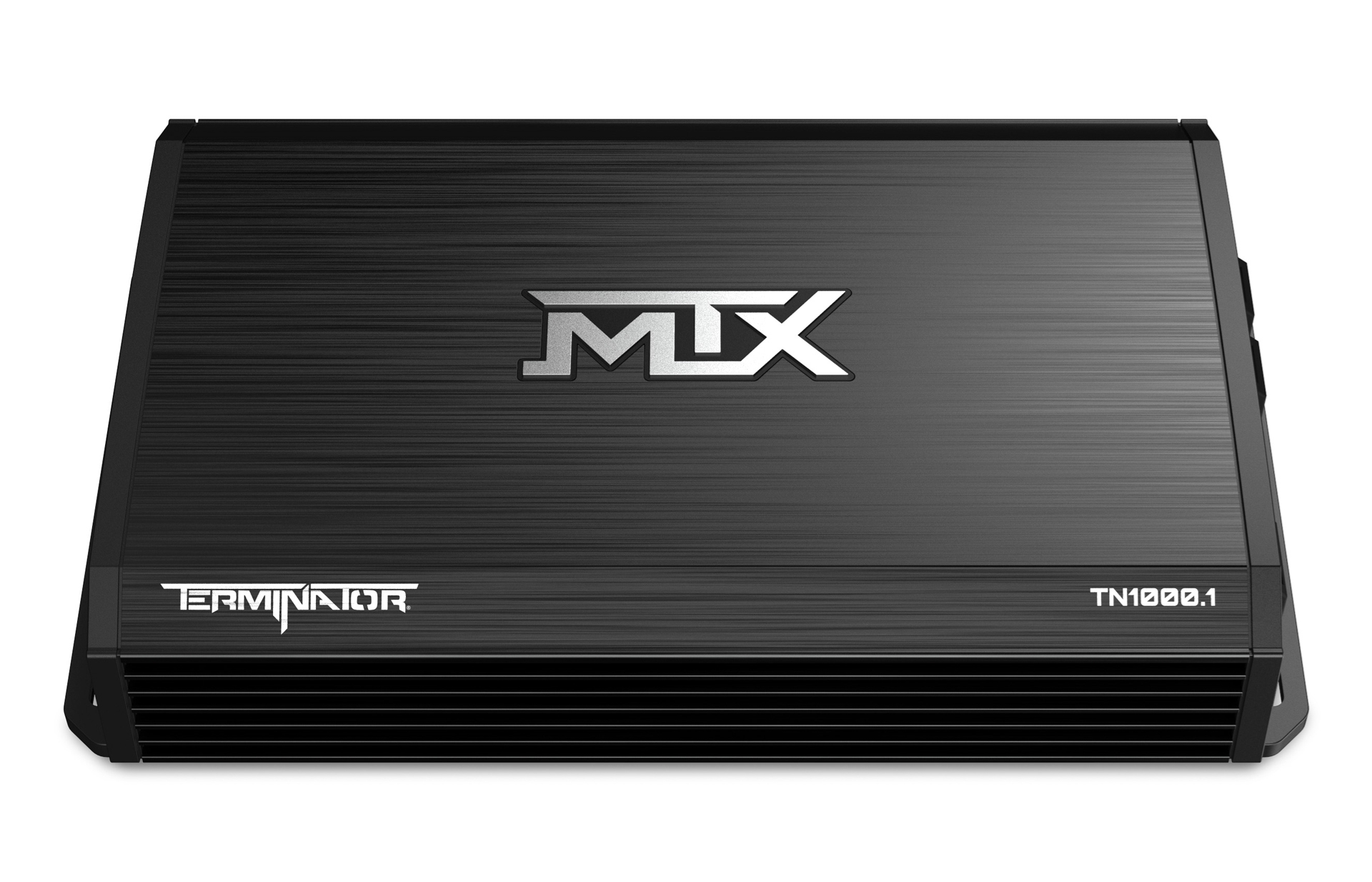

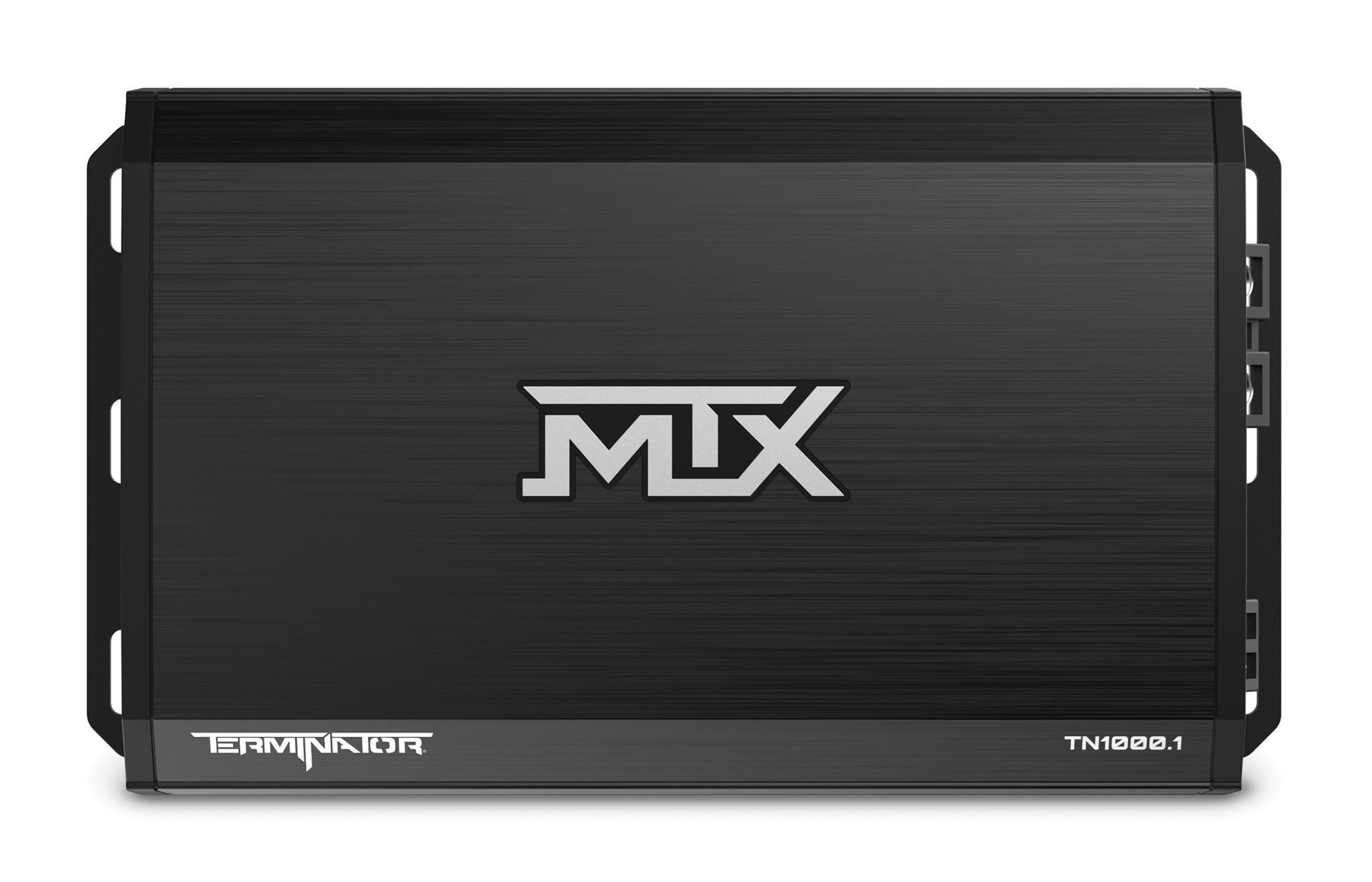

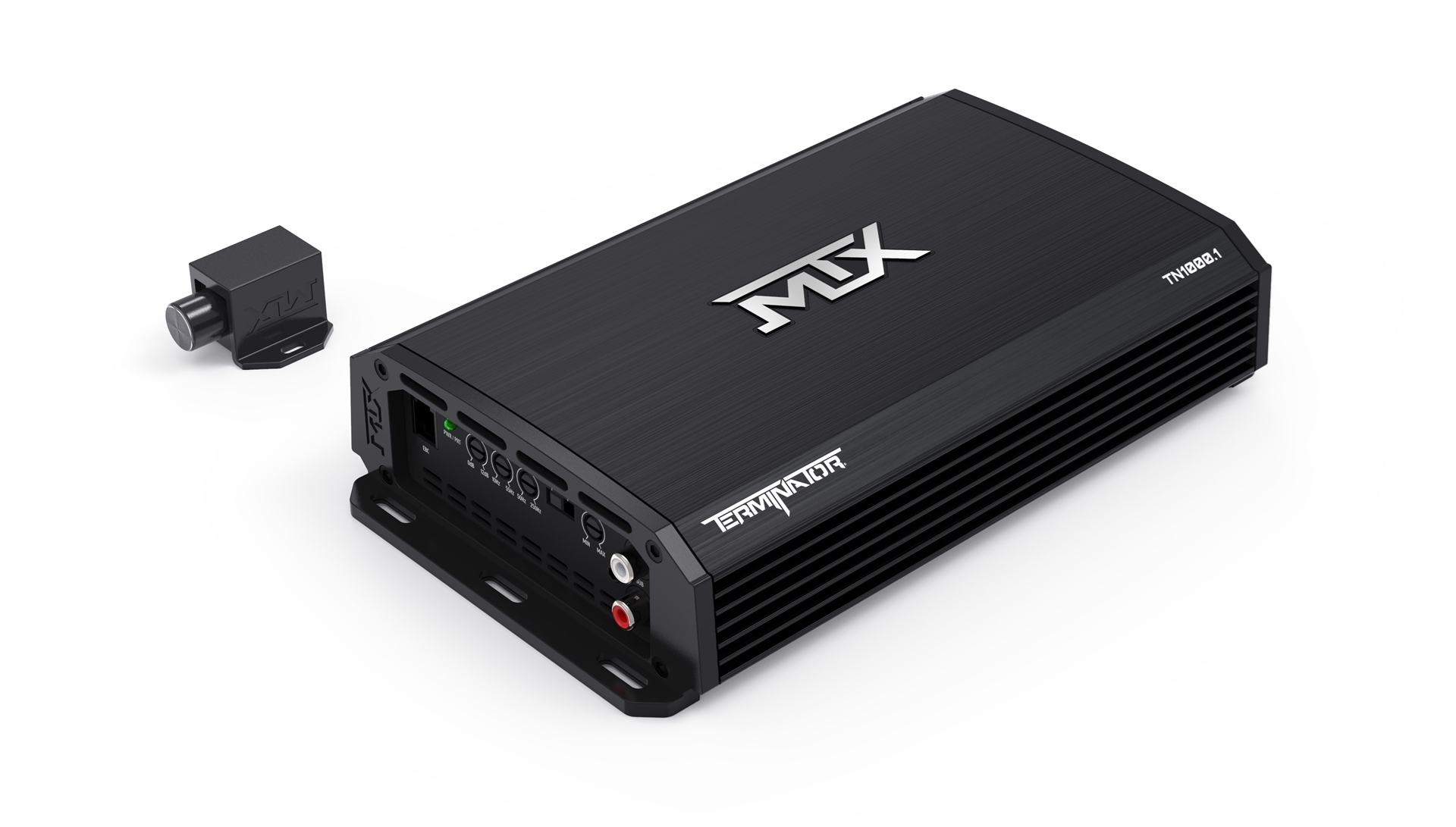

TN1000.1 Compact Design

Compact Design with Clarity In Mind

The TERMINATOR TN1000.1 amplifier is a high-quality 1000-watt RMS amplifier that can be installed in almost any vehicle due to its ultra-compact chassis size and multi-sectioned mounting bars Thanks to its intelligent design and impressive power capability you and your neighbors are sure to Feel the Thunder!

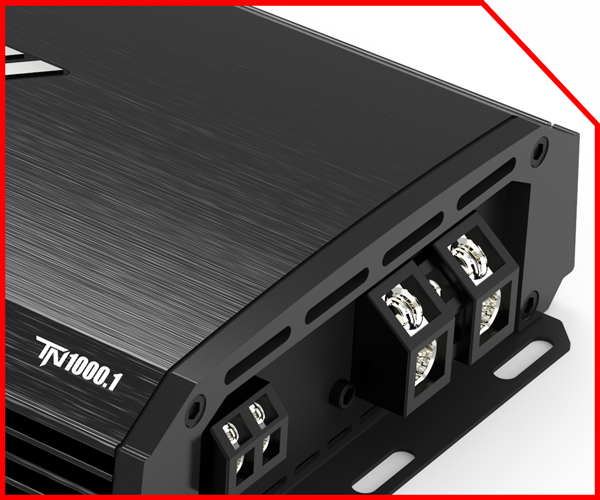

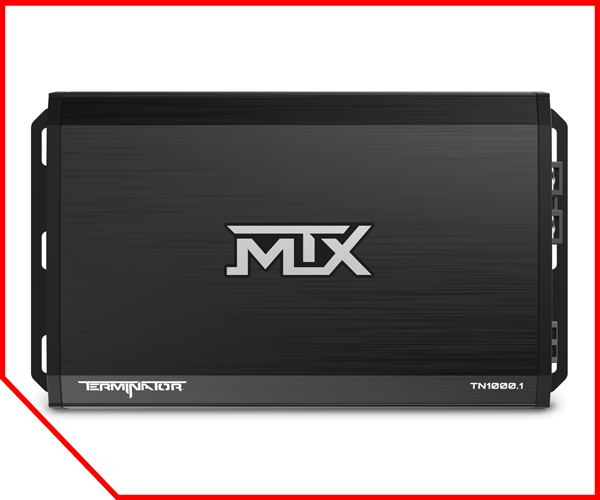

TN1000.1 Reliable and Efficient Power

Reliable and Efficient Power that Doesn’t Disappoint

Designed with efficient, Class-D technology keeping the power high and the heat low, this amp will push your subwoofers to the limit giving you the bass you feel as well as hear. You can tailor your subwoofers to your desired preferences without compromising on power or functionality. Our surface mount technology ensures a compact design that is highly reliable and resistant to vibrations.

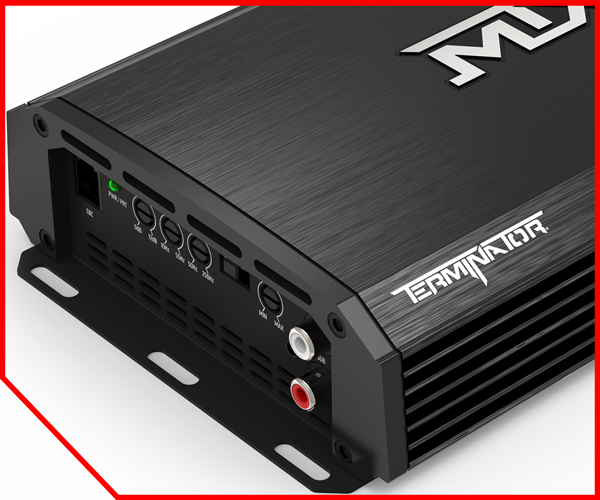

TN1000.1 Designed to Put You In Control

Designed to Put You In Control

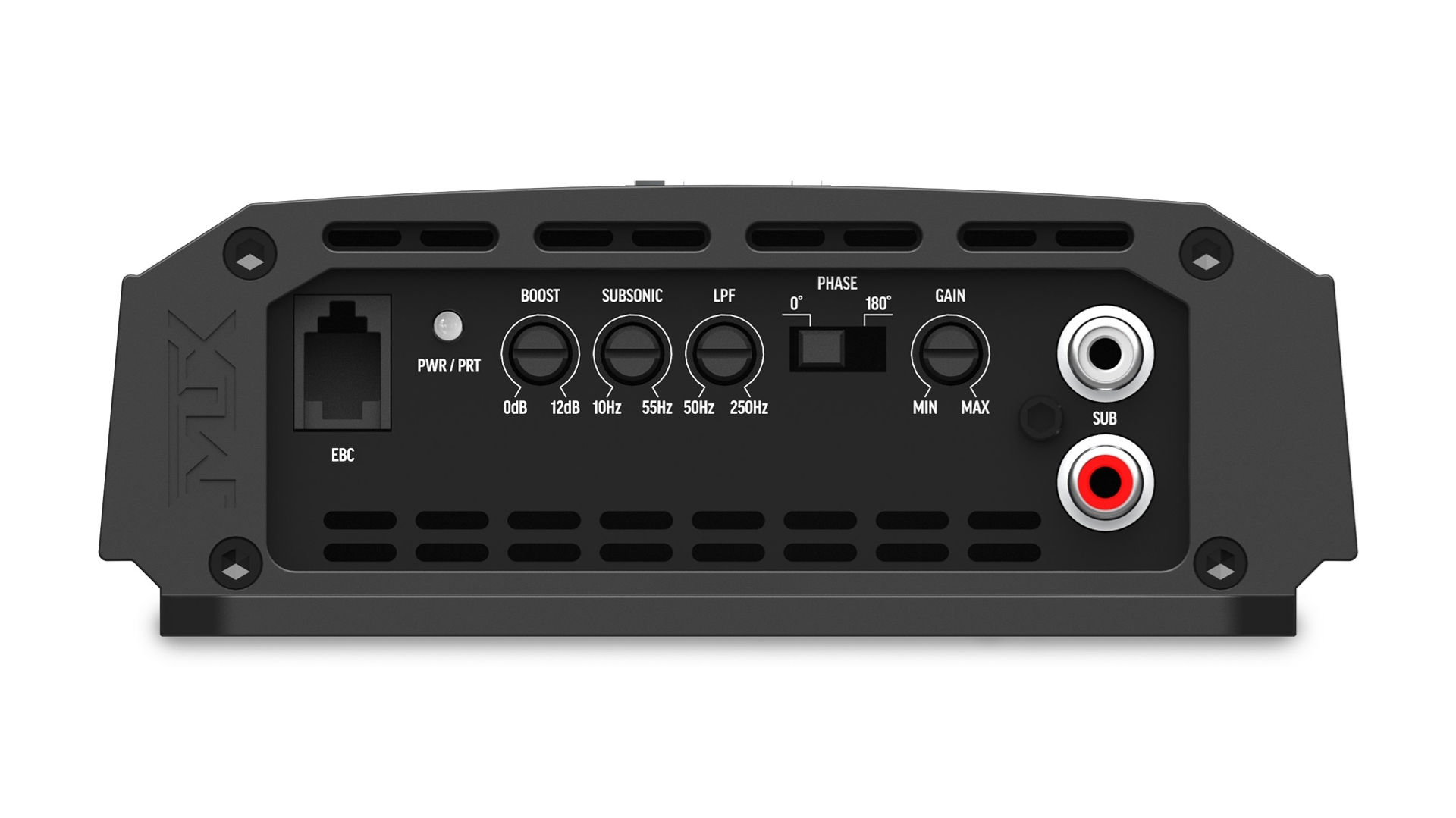

The TN1000.1 has integrated, variable gain and crossover controls along with a separate bass boost and subsonic filter to fine-tune your system. With next-generation circuitry, you’re protected against under or over-voltage, thermal, and short circuits. The LED status indicator light informs you of anything out of the ordinary. The included Remote Bass Knob puts the THUNDER right at your fingertips.

Dimensions & Details

Dimensions

  • A - Height:
    8 ⁵⁄₁₆" (210mm)
  • B - Width:
    5 ⁷⁄₁₆" (137mm)
  • C - Depth:
    2" (50mm)

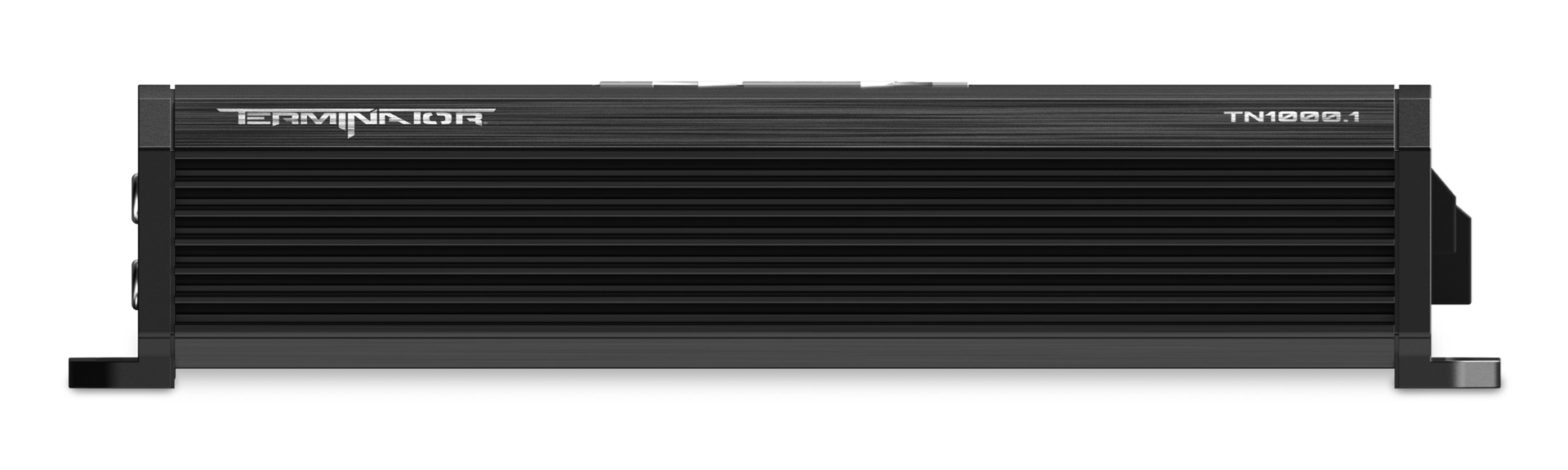

TN1000.1 Dimensions

Features

  • Reliable and Efficient Class-D Circuit Design
  • Small Size Footprint for Easy Installation
  • Surface Mount Component Technology
  • Fully Adjustable Gain and Crossover Controls
  • Integrated Bass Boost and Subsonic Circuits

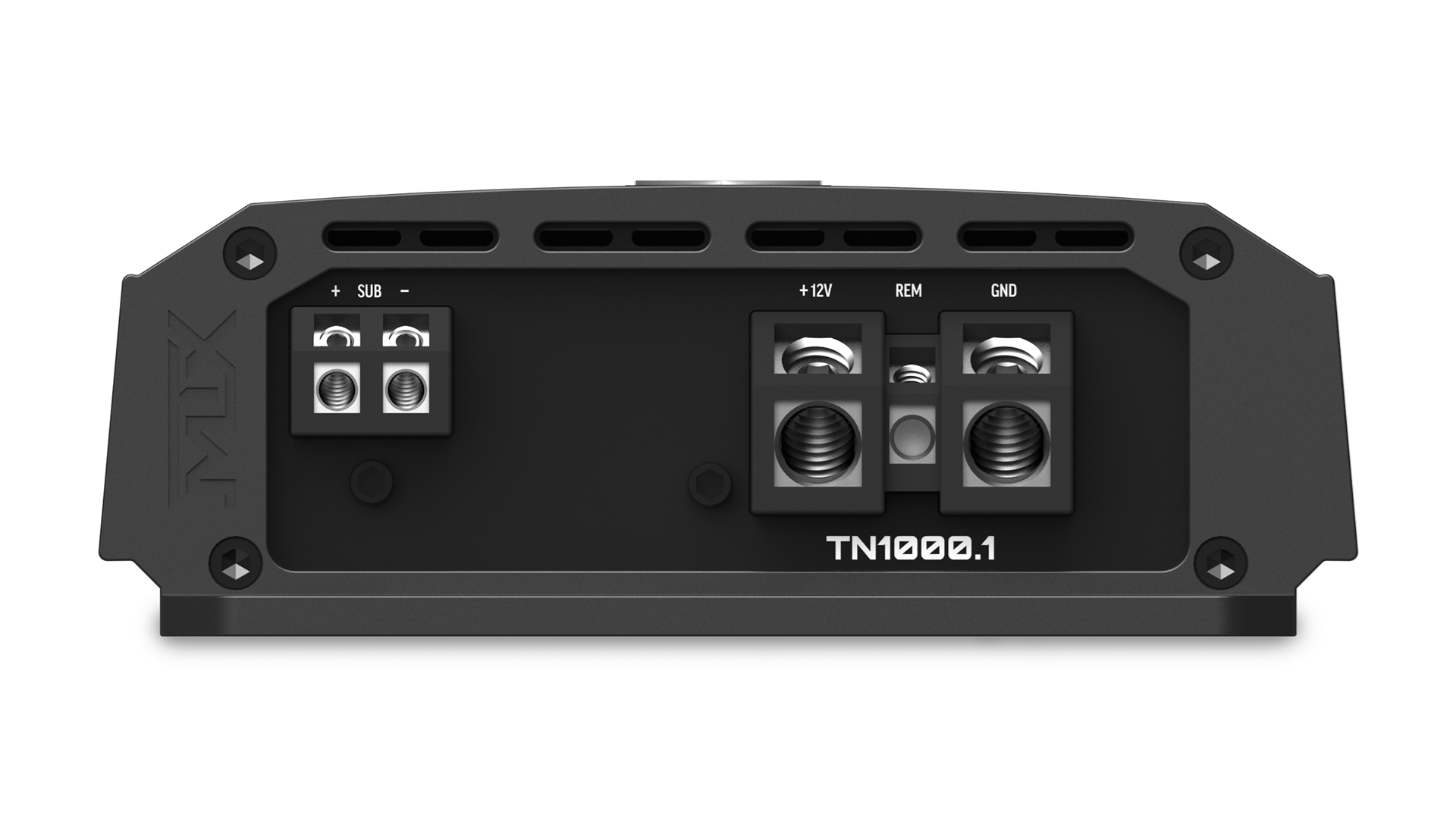

  • Direct Insert Power and Speaker Terminals
  • Power and Protection LED Light Status Indicator
  • Short, Thermal, and Under / Over Voltage Protection
  • Remote Bass Knob Included

Ratings

  • CTA-2006-D Compliant
  • Recommended Fuse Rating: 125Amp

SPECIFICATIONS

  • Description: Mono Block
  • Topology: Class D
  • 4Ω RMS Power Output: 400W x 1 Channel
  • 2Ω RMS Power Output: 700W x 1 Channel
  • 1Ω RMS Power Output: 1000W x 1 Channel
  • THD: < 0.3%
  • Signal to Noise Ratio: > 95dB
  • Frequency Response: 20Hz - 250Hz
  • Crossover: 50Hz - 250Hz
  • Subsonic Filter: 10Hz - 55Hz
  • Bass Boost: 0 - 12dB @ 45Hz
  • Maximum Input Level: 6V
  • Warranty Period: 24 months from date of purchase
