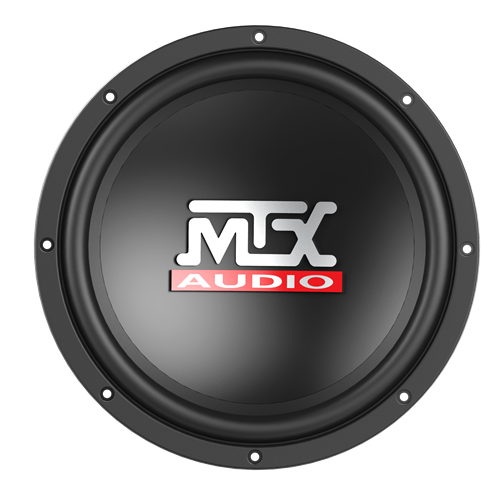

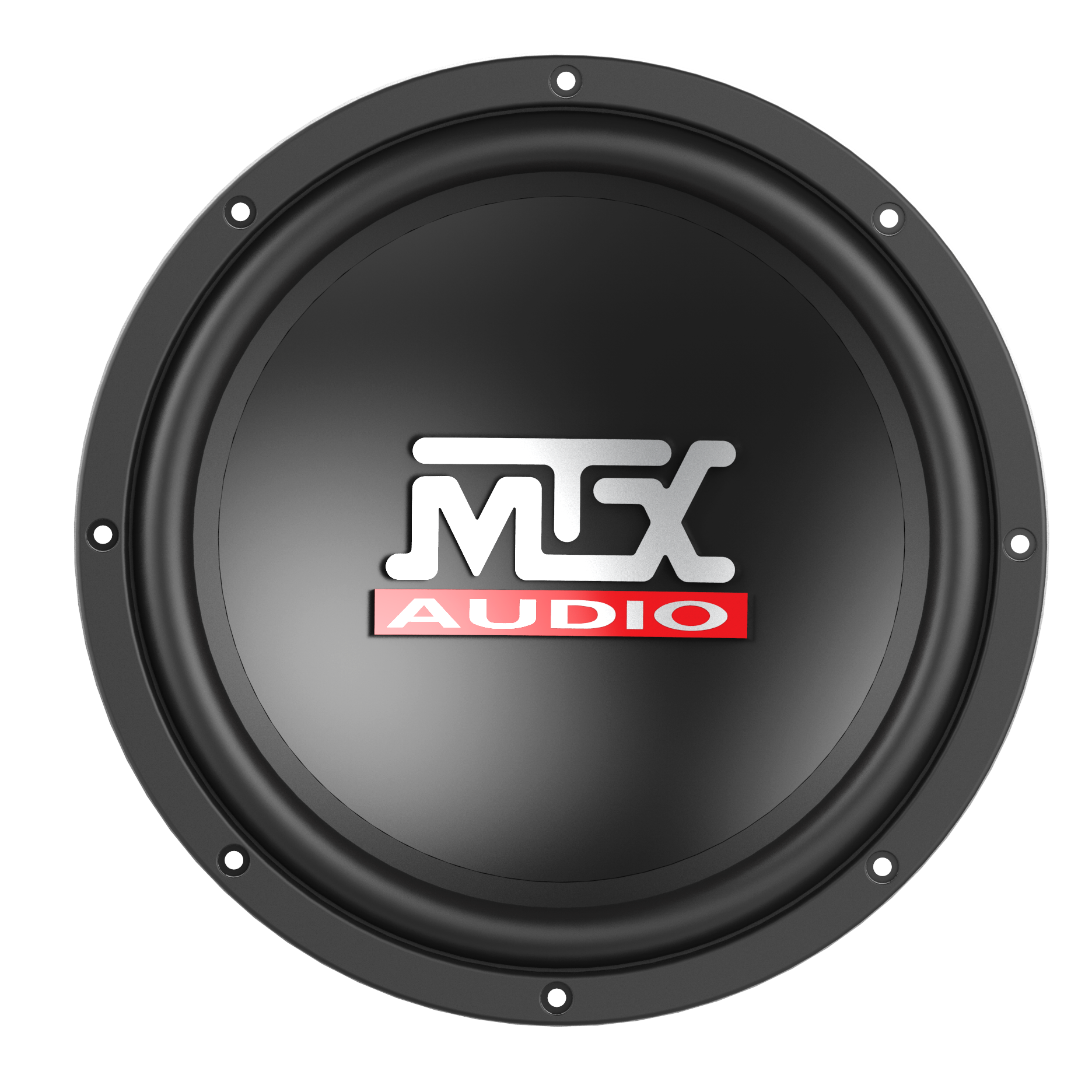

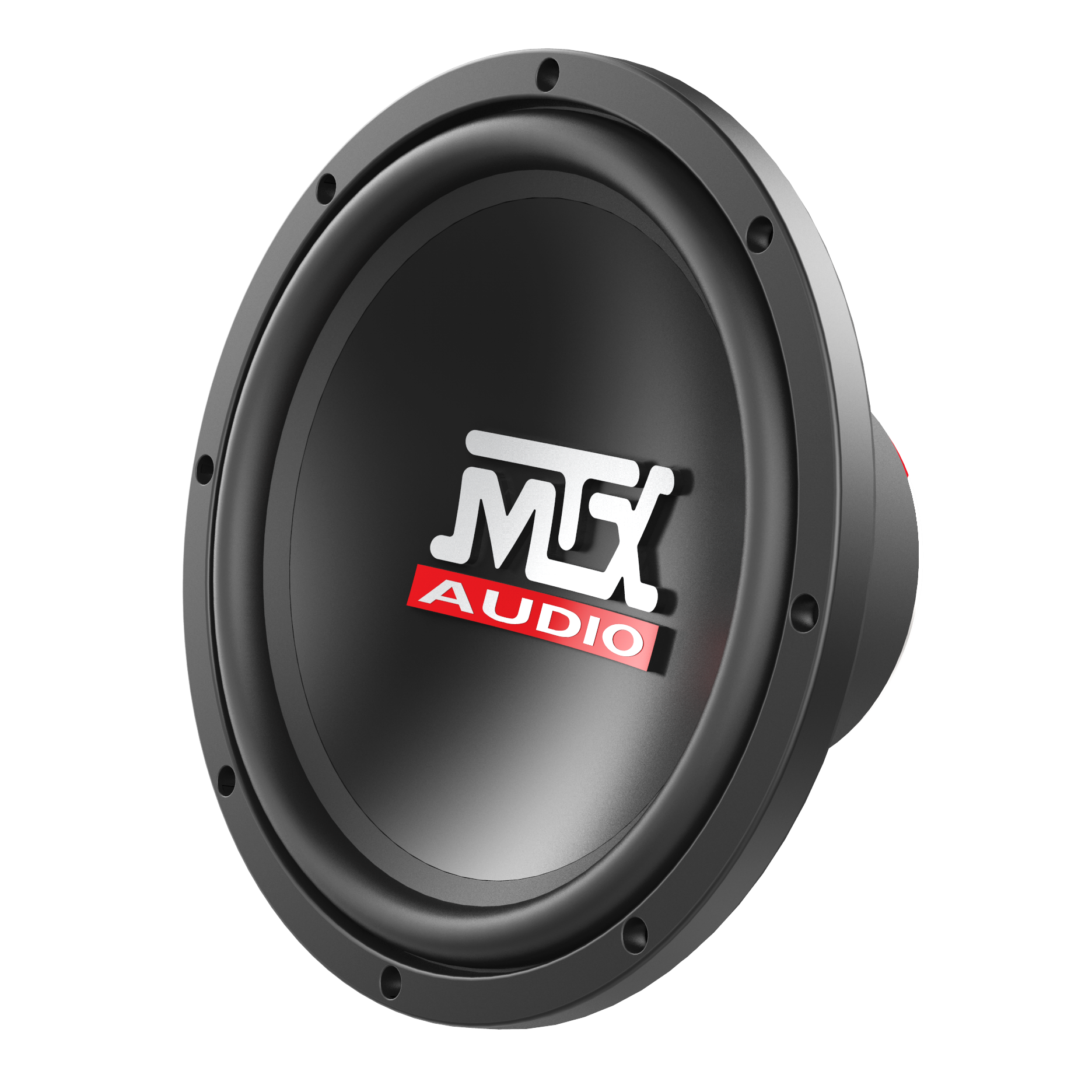

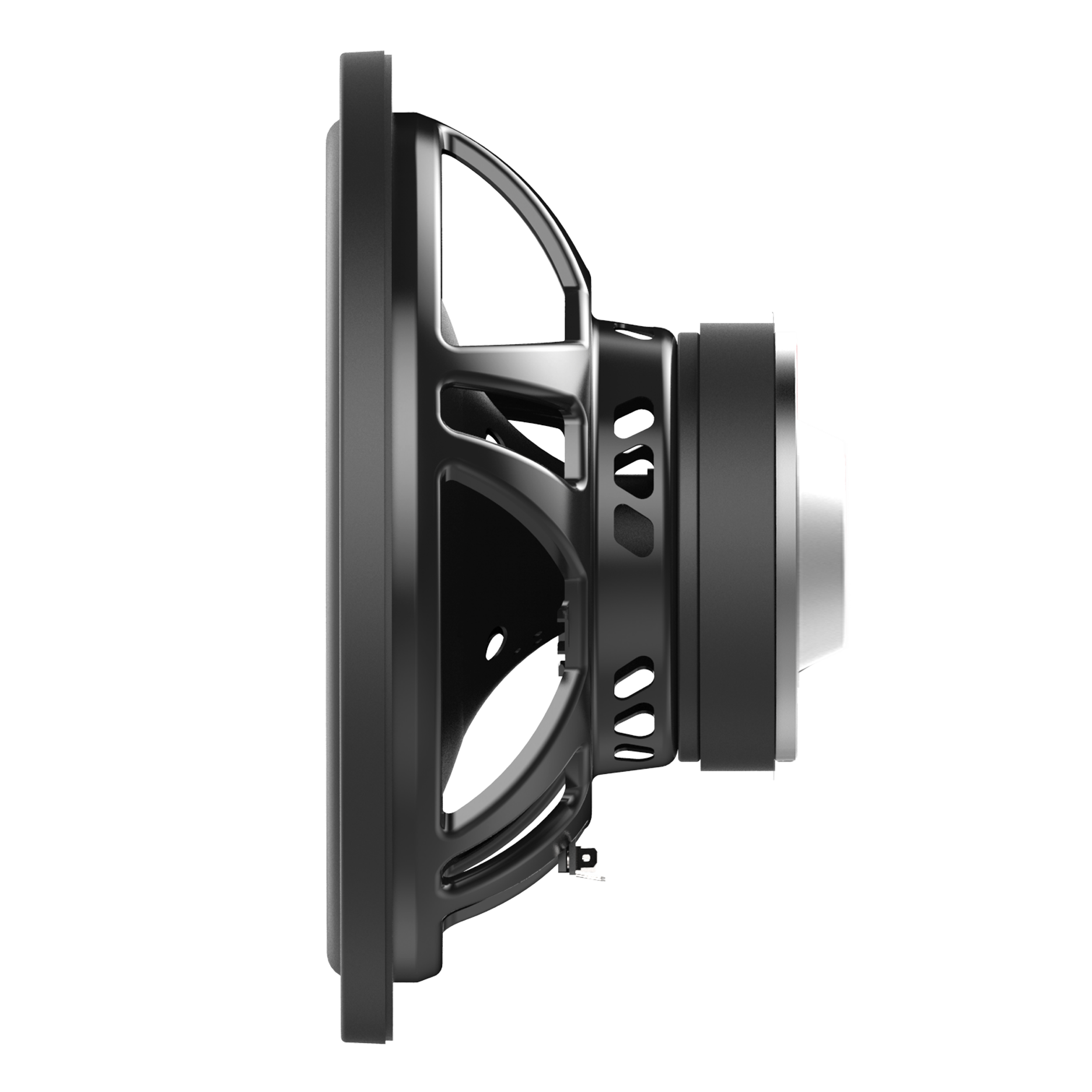

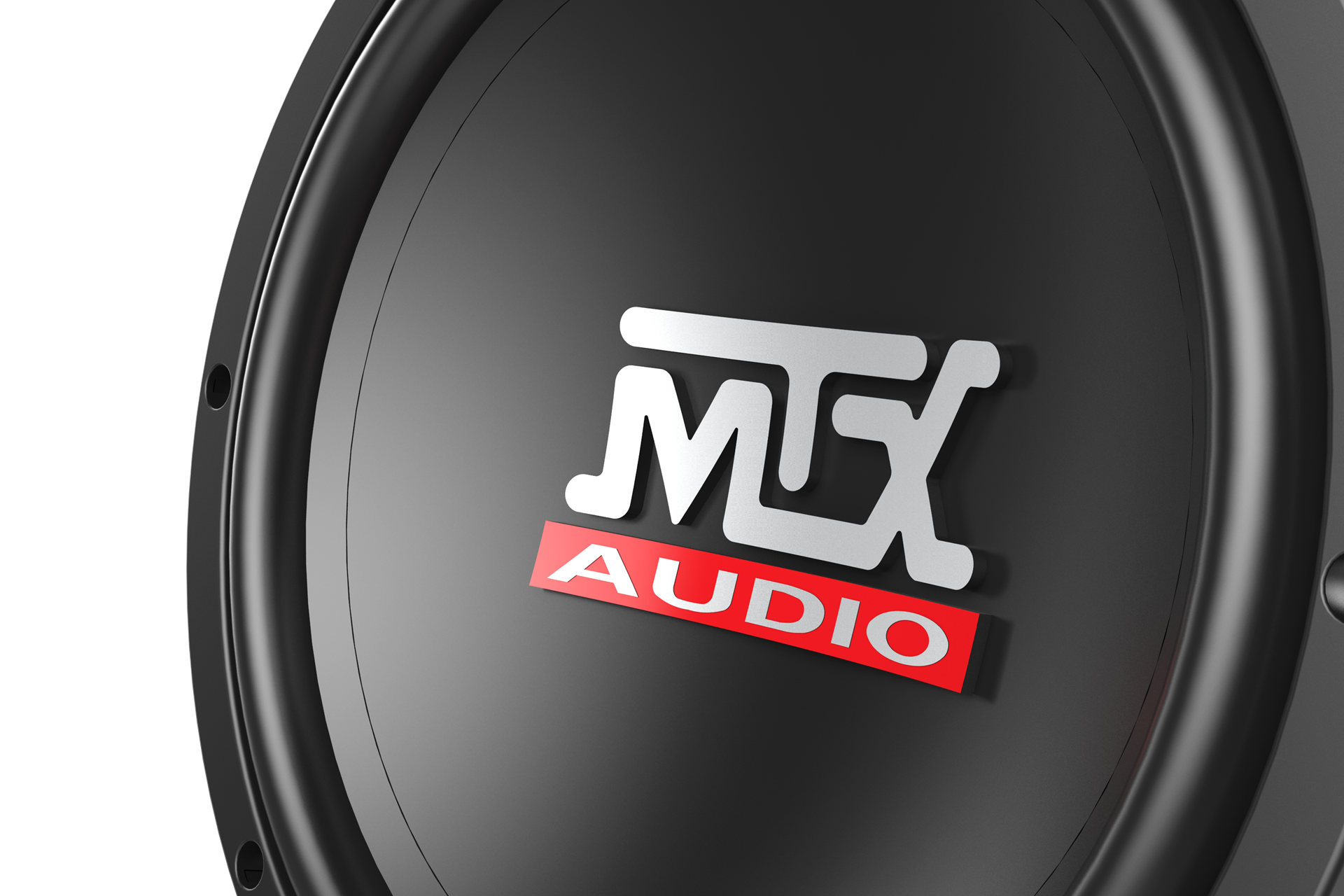

10" 150-Watt RMS 4Ω Subwoofer

Availability: In stock

$69.95 MSRP

$54.95

World Famous Sub

The classic Terminator Car Audio Subwoofer bangs out bass in rigs all over the world. Its economical price made it our most popular entry level sub over the last several years. And the Terminator still outperforms any sub in its class.

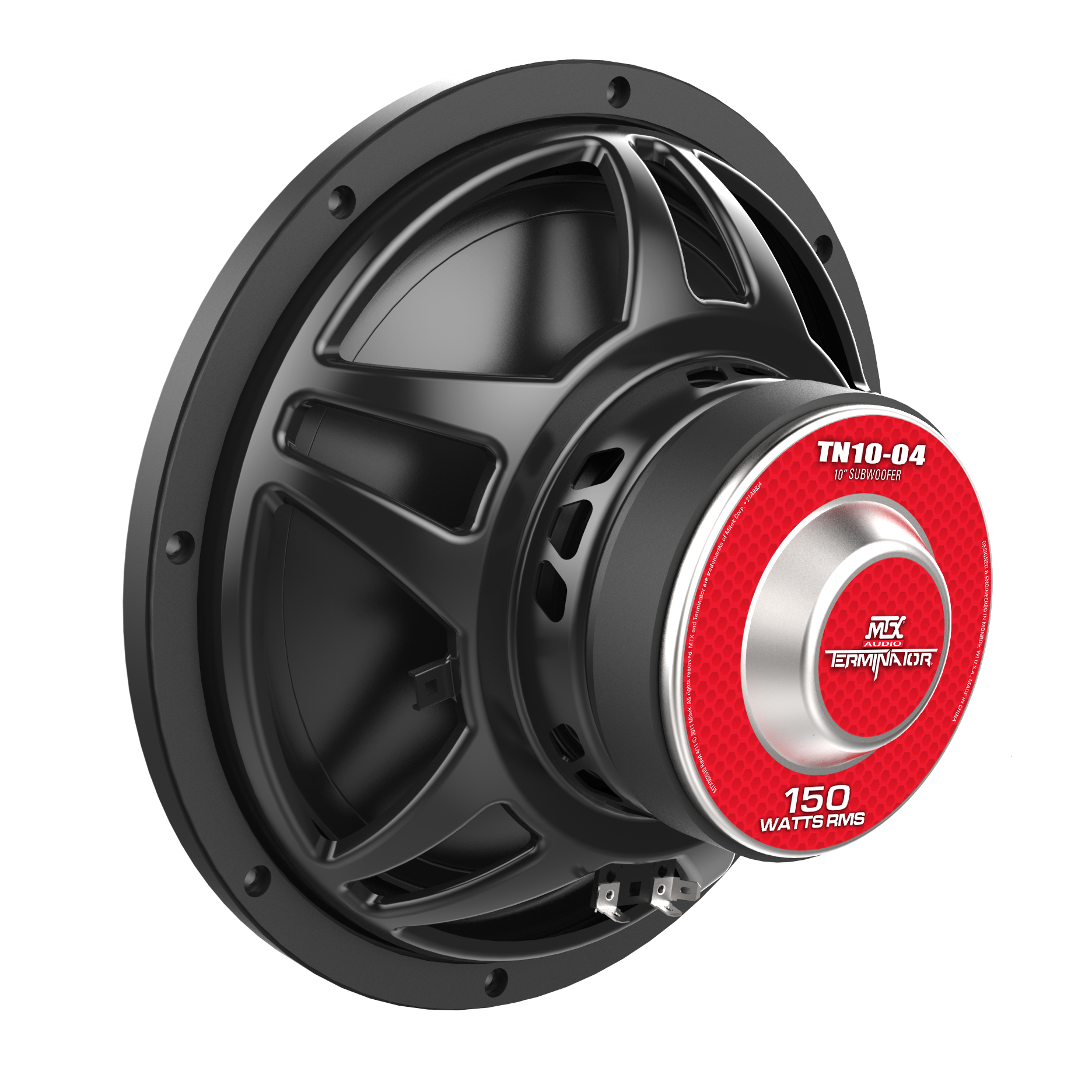

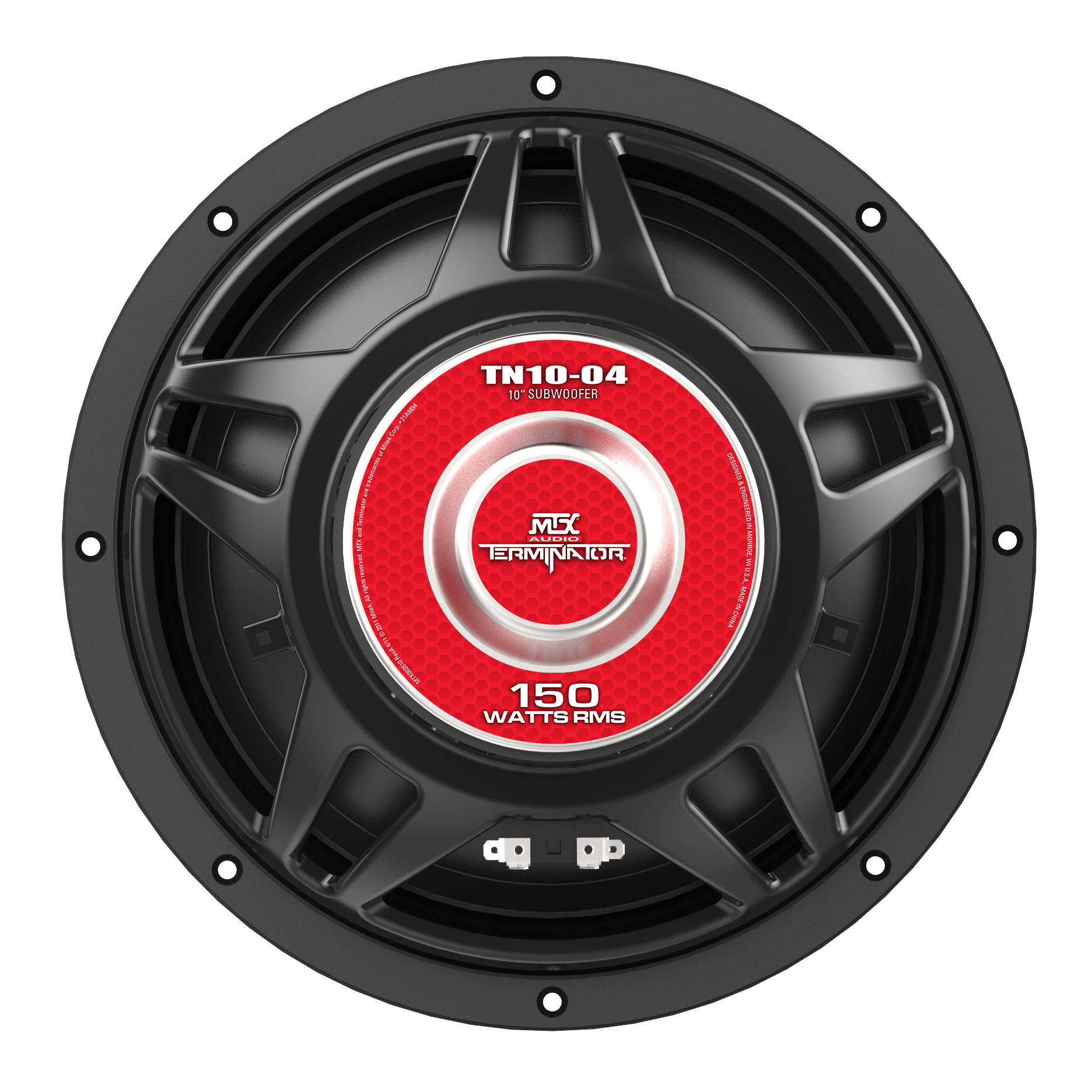

The MTX TN10-04 is a 10" single voice coil, 4 Ohm, 150 watt Car Audio Subwoofer that is economically priced but not short on performance.

Ask an expert Find a location

Spider Plateau Venting

Cools voice coil to prevent overheating.

Linear Drive Systems

Cone always moves linear, preventing distortion.

The Terminator Sub

The terminator subwoofer is loaded with MTX engineering technology including Spider Plateau Venting that ensures trouble free performance and an Assymetrical Linear Drive System that limits distortion ensuring unbeatable performance.

If you are looking for a great subwoofer that won't break your bank look no further. The Terminator sub is still one badass bass pounder...

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

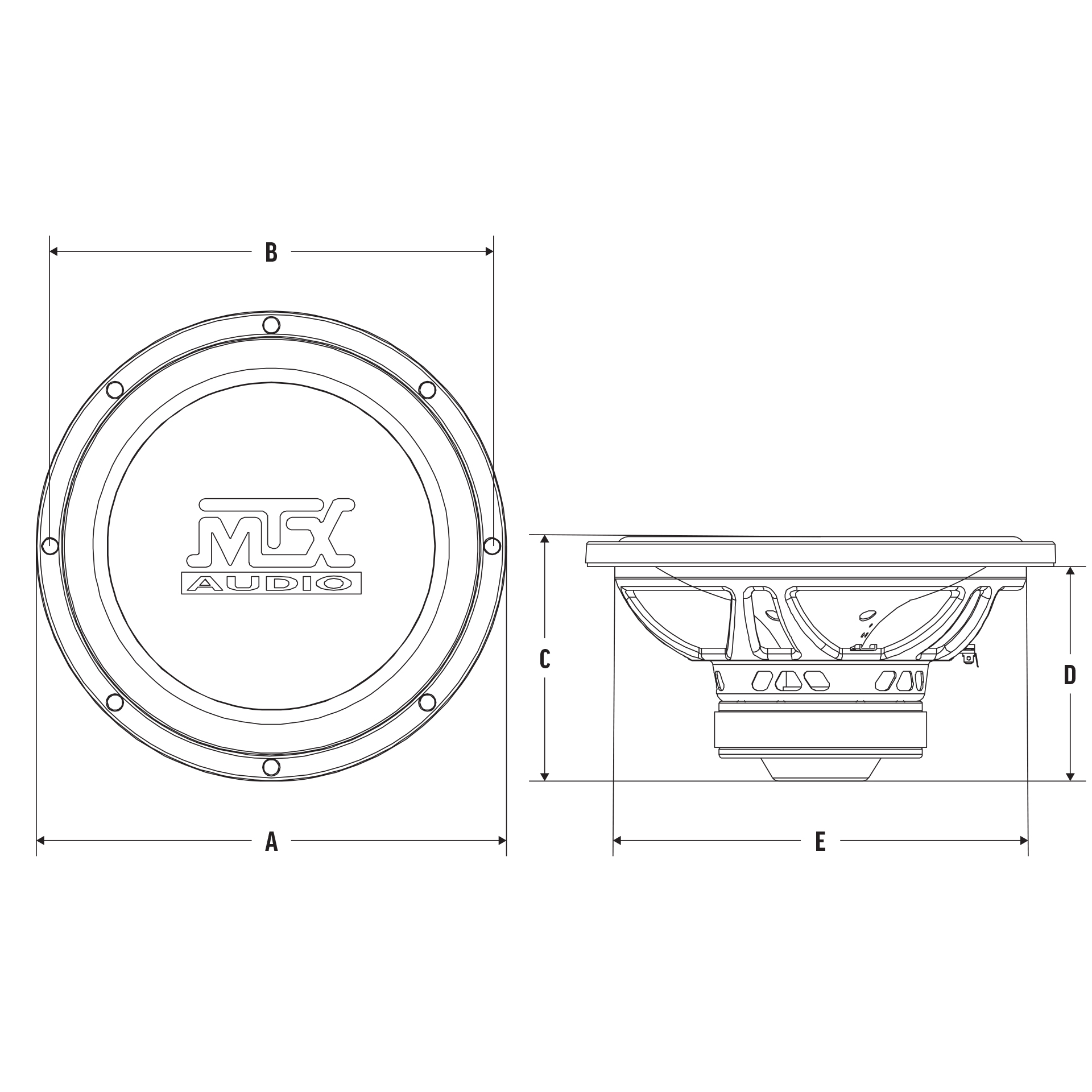

Dimensions & Details

Dimensions

A - Total Diameter: 10.47" (266mm)
B - Driver Diameter: 8.54" (217mm)
C - Total Depth: 5.34" (135.6mm)
D - Mounting Depth: 4.86" (124mm)
E - Cut Out Diameter: 9.19" (233mm)

What's in the Box

Subwoofer
Technical Data Sheet

Features

• 10-inch 4Ω Subwoofer

• 150 Watt RMS Power Handling

• Stamped Steel Basket

• Polypropylene Dust Cap

• Spider Plateau Venting

• Asymmetrical Linear Drive Systems

SPECIFICATIONS

Recommended Amp Power (RMS): 75 - 150
Frequency Response: 29Hz - 160Hz
Impedance: 4Ω
Sensitivity: 84.9dB
Voice Coil: 1.50" (3.81 cm)
Magnet Weight: 27 oz.
Mounting Depth: 4.86"
Cut Out Diameter: 9.19"
Volume Displacement (cu in): 21.21 cu in
Sealed Enclosure Net Volume: 0.75 cu ft
Vented Enclosure Net Volume: 1.45 cu ft
Warranty Period: 12 months from date of purchase

Downloads

- TN10-04Tech Data Sheet

View | Download
Test Tone - 50Hzmp3

Download
