SKU: TH90-4
Sold Individually

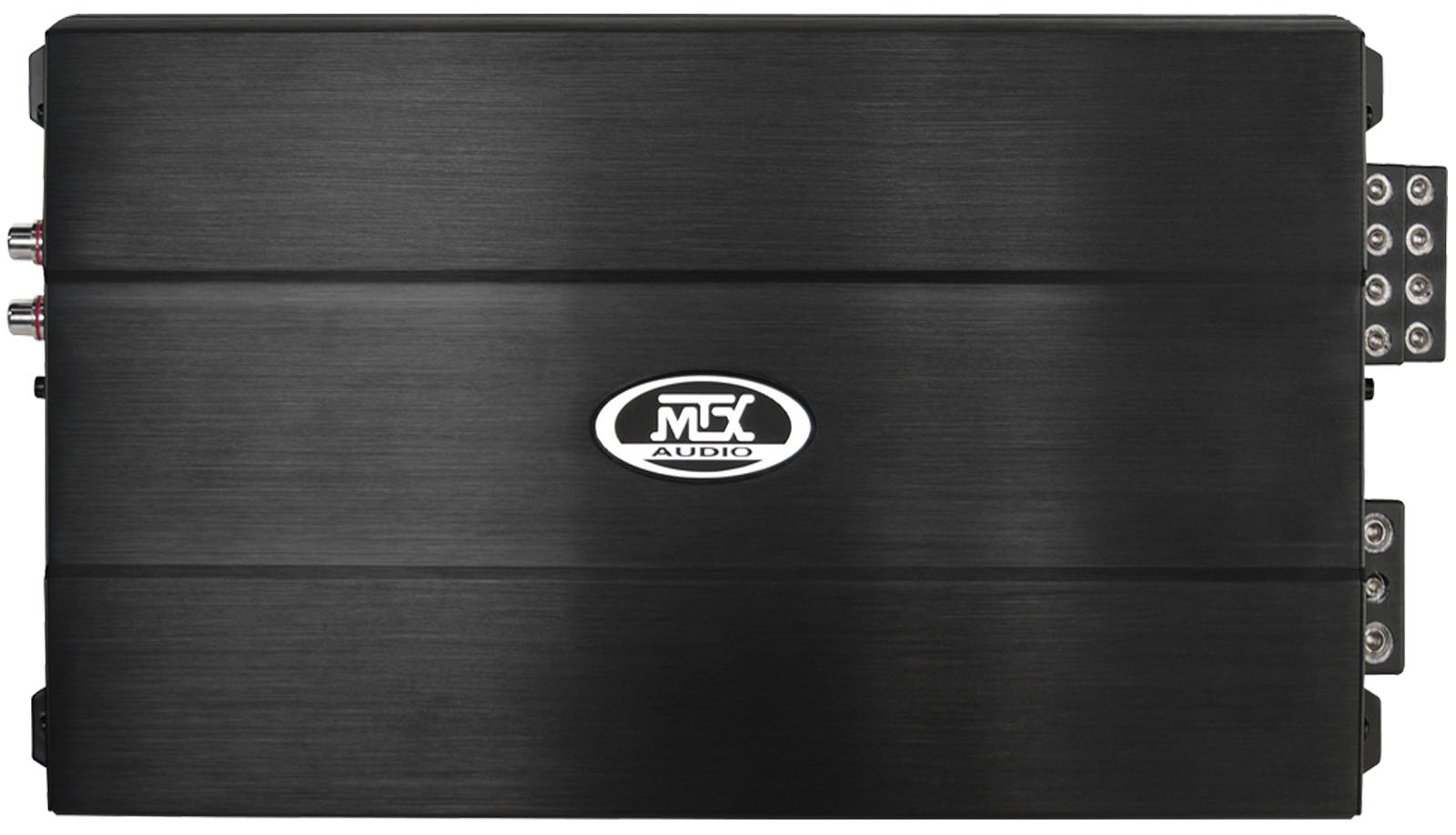

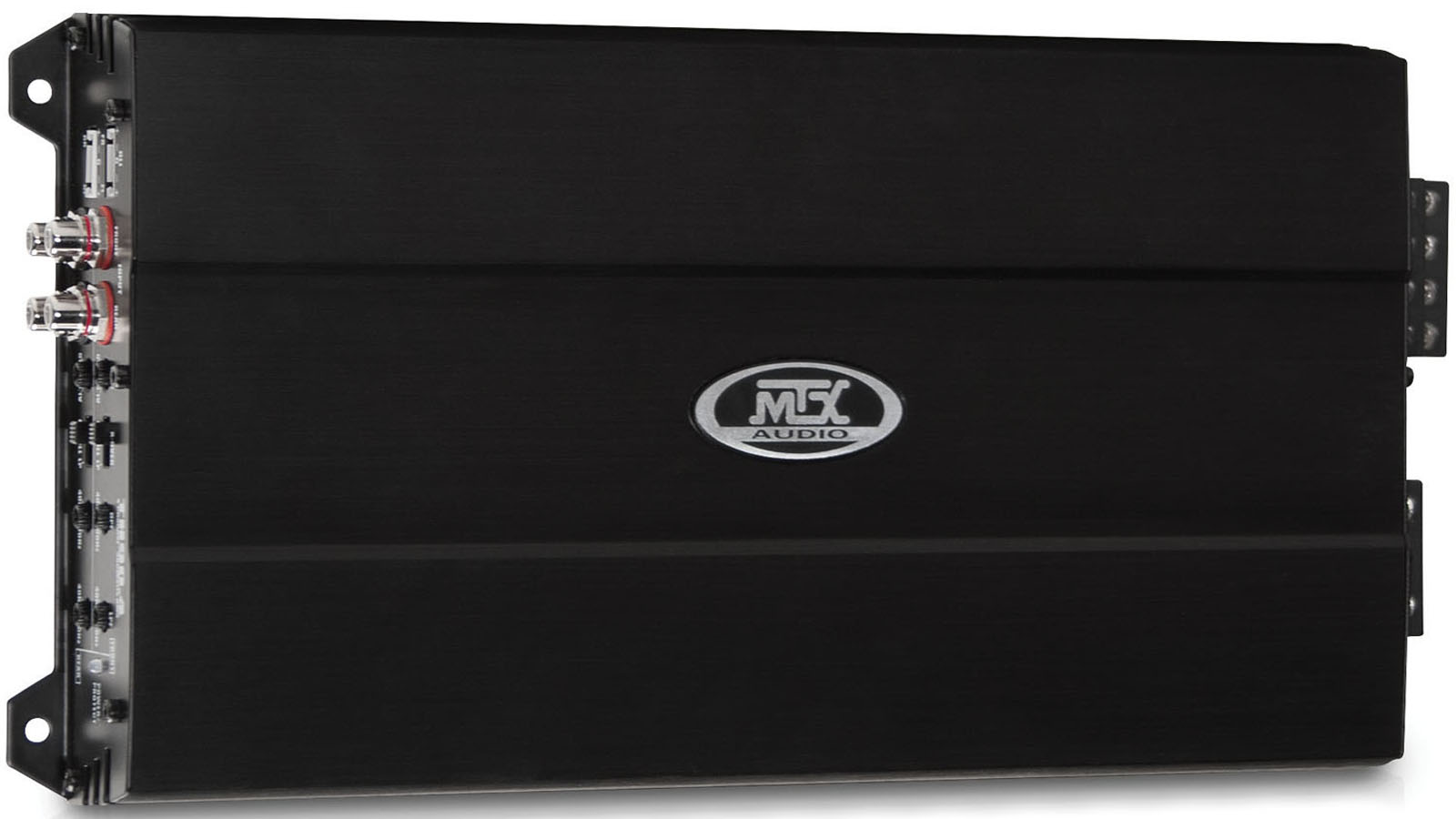

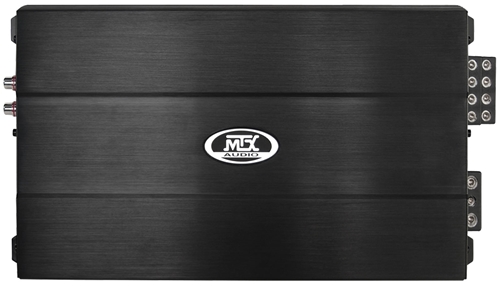

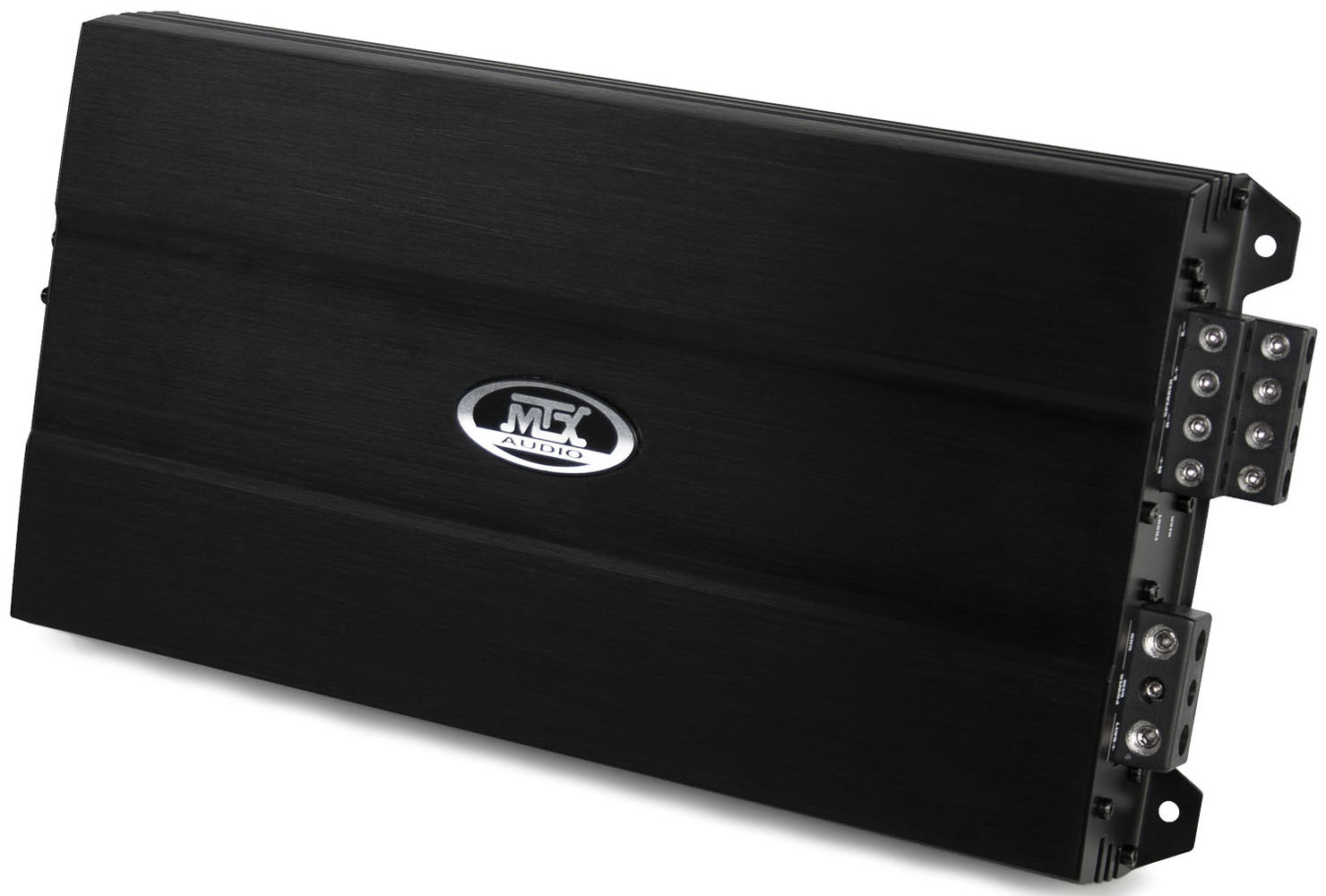

TH Series TH90.4 360W RMS 4-Channel Class A/B Amplifier

Four Exceptional Channels

The TH90.4 amplifier is a 4-channel class A/B full range amplifier designed to exceed your expectation for how an amplifier should perform.

This amp is designed to power up to 360 watts of speakers into a 2 ohm load.

Ask an expert Find a location
TH1200.1D Top Open

TH1200.1D With Top Open Shown

Four Channels Of Power

The TH90.4 amplifier is a 4-channel class A/B full range amplifier designed to exceed your expectation for how an amplifier should perform.

Featuring anodized aluminum top covers and subtle MTX badging, these amplifiers incorporate high end materials with convection cooling functionality. Each TH Series amplifier is designed to perform to the highest standard and has undergone rigorous quality testing to ensure this standard is met.

TH90.4 Key Features

  • Anodized Aluminum Top Cover
  • Variable High and Low Pass Crossovers
  • High Level Inputs

This amp is designed to power up to 360 watts of speakers into a 2 ohm load. The TH90.4 includes both high and low level inputs so it can be easily connected to any system as well as a full range, high pass, or low pass selectable crossover.

WHAT OUR CUSTOMERS SAY!

Well im very picki when it comes to car audio system , in the past ive had a truck equiped mtx amps both for spkrs and subs olso had a 12" dual subwoofer box and that thing hit so hard it was unbeliabable ...not to mention my door spkrs ...i would recomend mtx products to anyone ..cant go wrong ..MTX IS THE BEST....

samuel 3/13/2013 TH1200

This amp will surprise you. This should drive any 8", just about every 10", and quite a few 12" subs well. Running a 1 ohm stable operation has this amp running barely warm to the touch hours into a play session. Plenty of features and adjustments for anything you should need, included bass control dials in bass level just right, clean sounding power output, compact and clean design, and the level of versatility this amp offers makes it hard to beat.

Matt 11/1/2013 TH350



StreetWires 20% Off

Dimensions & Details

SPECIFICATIONS

  • Description: 4-Channel
  • 4Ω RMS Power Output: 60W x 4 Channels
  • Signal to Noise Ratio: >75dB
  • 2Ω RMS Power Output: 90W x 4 Channels
  • 1Ω RMS Power Output: N/A
  • Topology: Class A/B
  • THD: <1%
  • Frequency Response: 20Hz - 30kHz
  • Crossover: Variable High, 12dB/Oct; 40Hz to 400Hz; Variable Low, 12dB/Oct; 40Hz to 400Hz
  • Subsonic Filter: NA
  • Max Sensitivity: 100mV
  • Maximum Input Signal: 6V
  • Height: 7.06"
  • Width: 14.3"
  • Depth: 2.13"
  • Recommended StreetWires Amp Kit: ZN5K-04 OR ZN3K-04
