SKU: S6510-44
Sold Individually

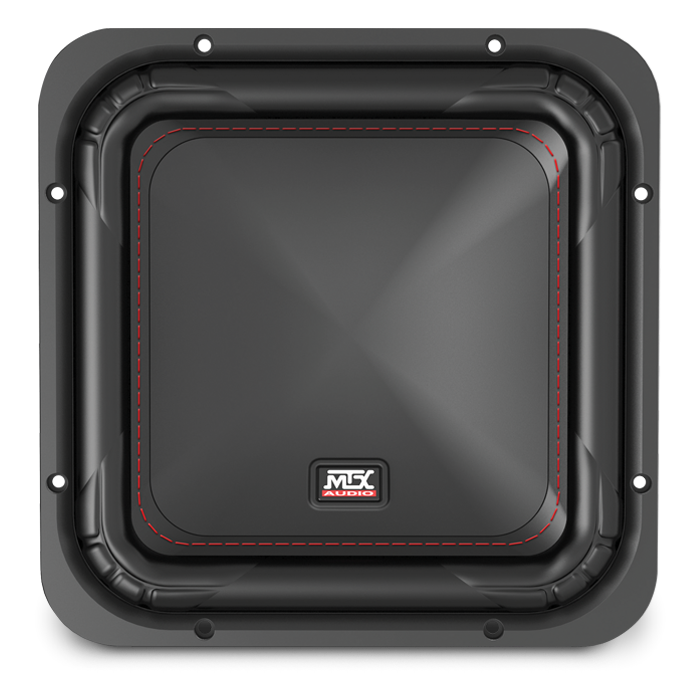

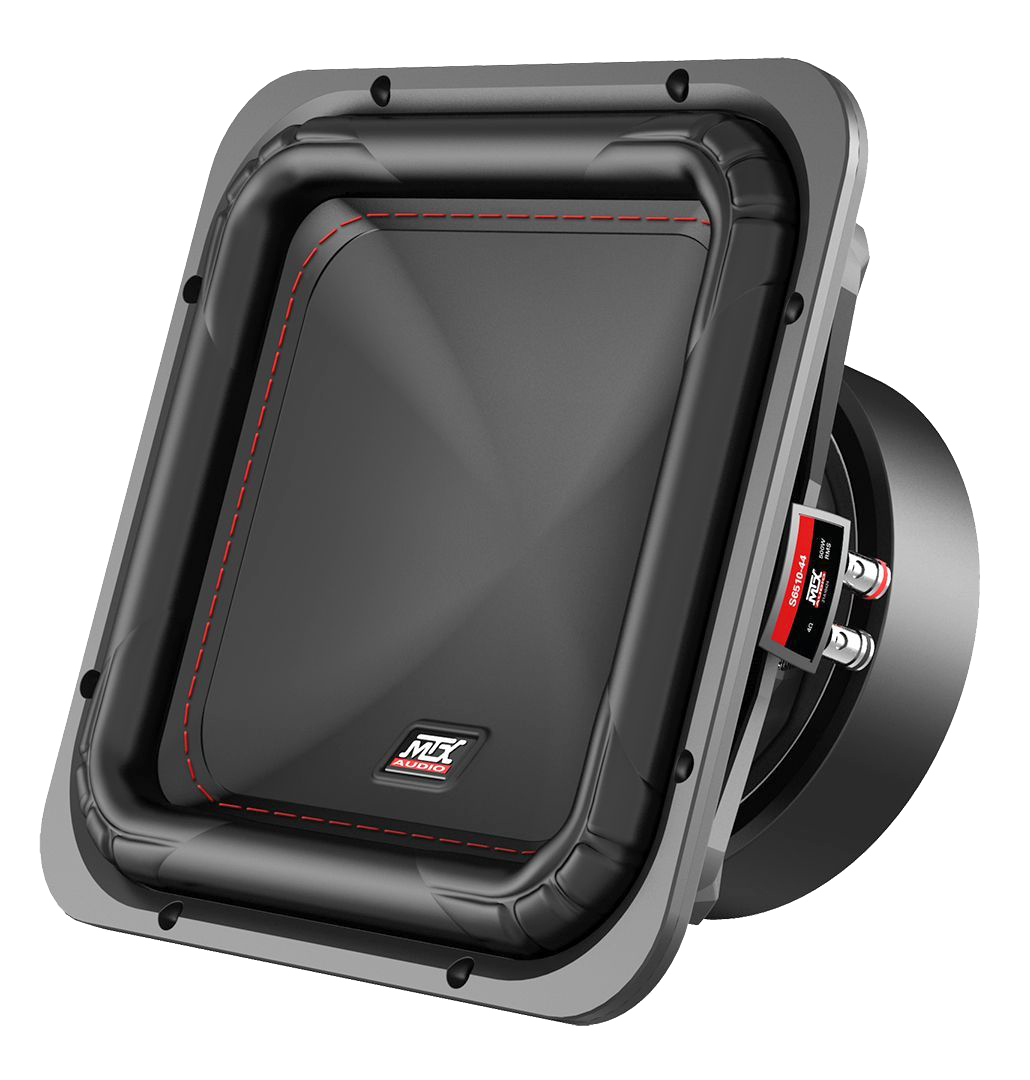

10" 500-Watt RMS Dual 4Ω Square Car Audio Subwoofer

Availability: In stock
$329.95 MSRP
$279.95

Built for SPL

S65 Series square subwoofers are built to deliver exceptional SPL and the most bass for your buck.

The S6510-44 is a 10" dual voice coil, 500 watt, dual 4 ohm square subwoofer built on the MTX tradition of getting more than expected.

Ask an expert Find a location
S6510-44 Subwoofer

Patented Technology

The surround geometry on the S65 Series, protected by US patent #7,275,620, increases the effective Xmax of the subwoofer, resulting in higher SPL and volume displacement, which translates to more dB that comparable subwoofers from other manufacturers. This patented design makes the S65 the loudest 500-watt square subwoofer in the market today.

S6510-44 Subwoofer

Cool Under Pressure

Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. The constant movement of hot air out and cooler air in, targeted directly at the 2.0" high temperature voice coil increases reliability and longetivity.

S6510-44 Subwoofer

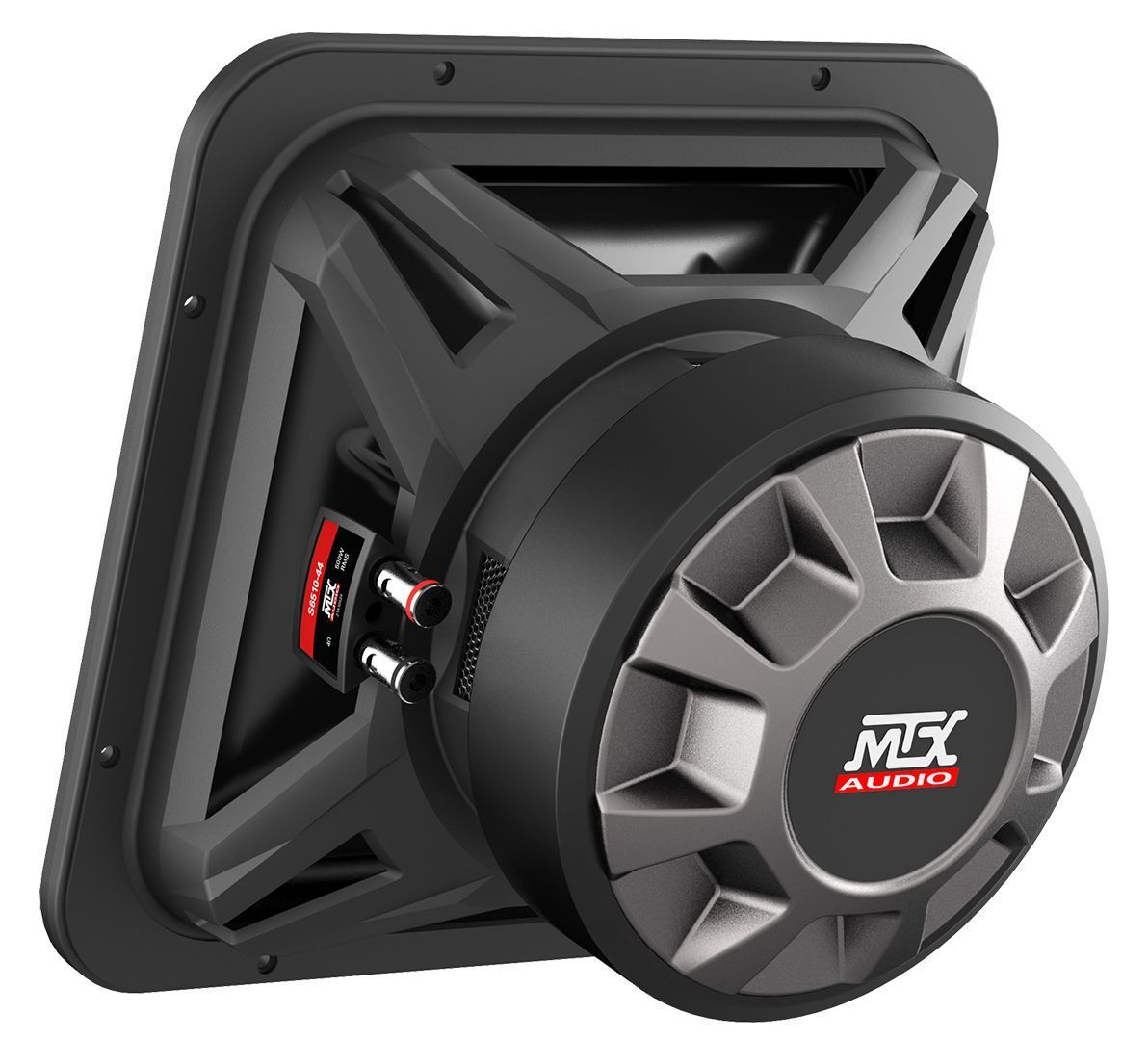

Radial Ribbed T-Yoke

The specially designed backplate on the S65 Series not only gives it an impressive stance, but acts as an additional medium to conduct heat away from the voice coil. The increased surface area of the backplate dissipates additional heat ensuring the S65 subwoofer plays with lower distortion for extended periods.

All JackHammer SuperWoofers are built to order. Call us at 1-800-225-5689 to order yours today.

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

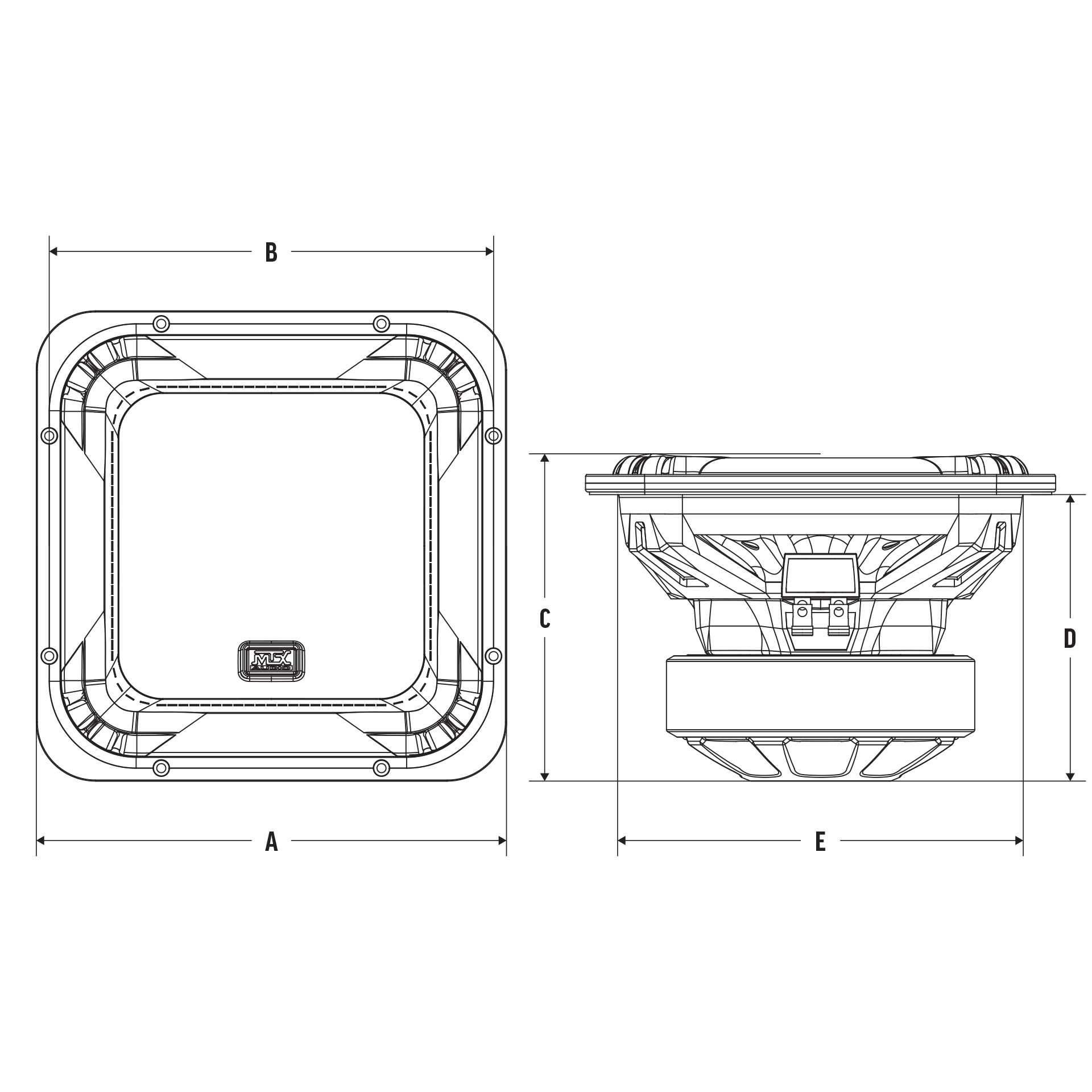

Dimensions & Details

Dimensions

  • A - Total Diameter:    10.75" (273.1mm)
  • B - Driver Diameter:    8.66" (220mm)
  • D - Mounting Depth:   6.63" (168.3mm)
  • E - Cut Out Diameter:   9.31" (236.5mm)

What's in the Box

  • Subwoofer
  • Technical Data Sheet

SPECIFICATIONS

  • Recommended Amp Power (RMS): 250 - 500
  • Impedance: Dual 4Ω
  • Frequency Response: 26Hz - 130Hz
  • Sensitivity: 84.5dB (1W/1m)
  • Volume Displacement (cu in): 45.65
  • Voice Coil: 2" (5.08 cm)
  • Mounting Depth: 6.625" (16.83cm)
  • Cut Out Diameter: 9.313" (23.65cm)
