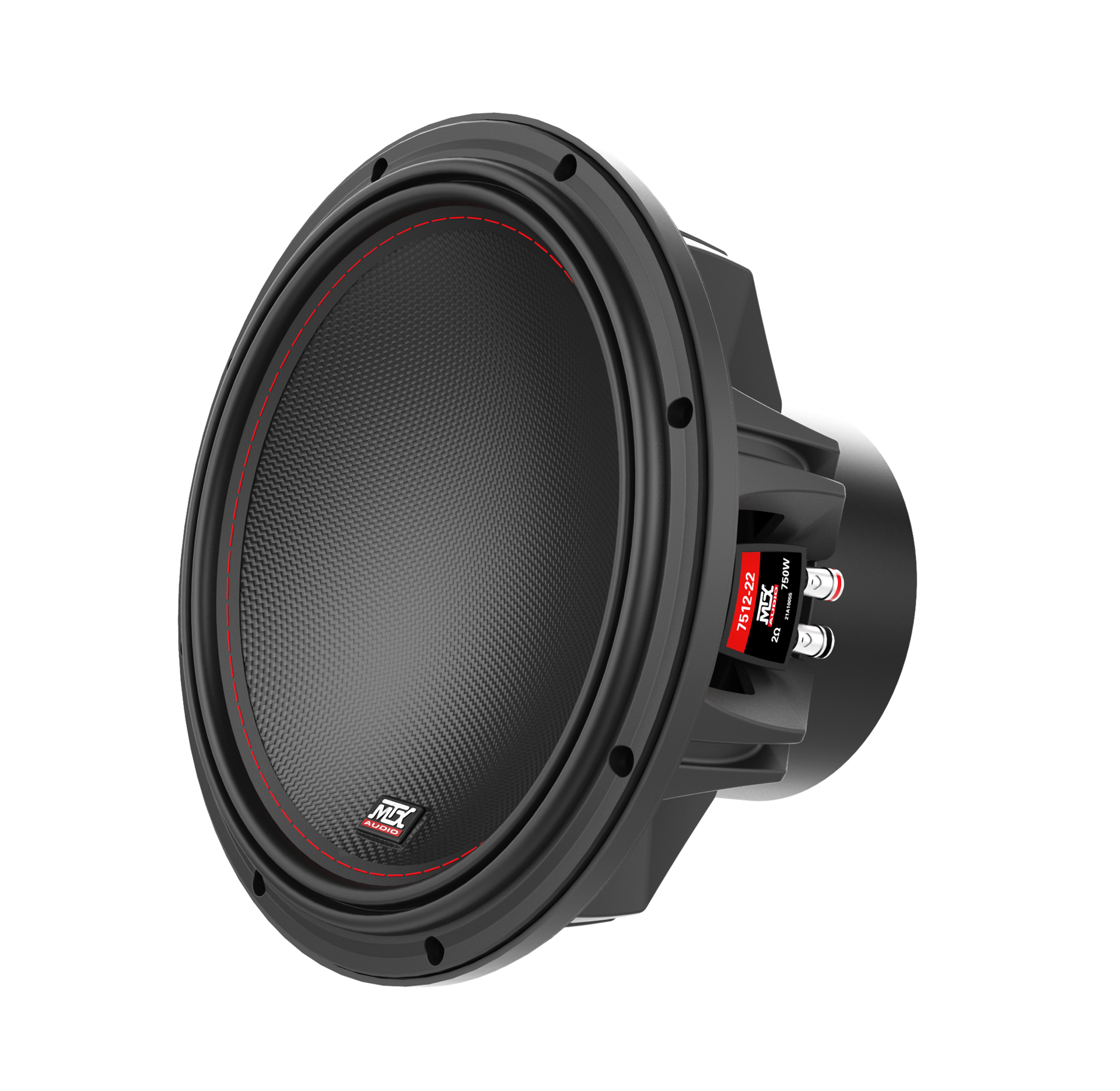

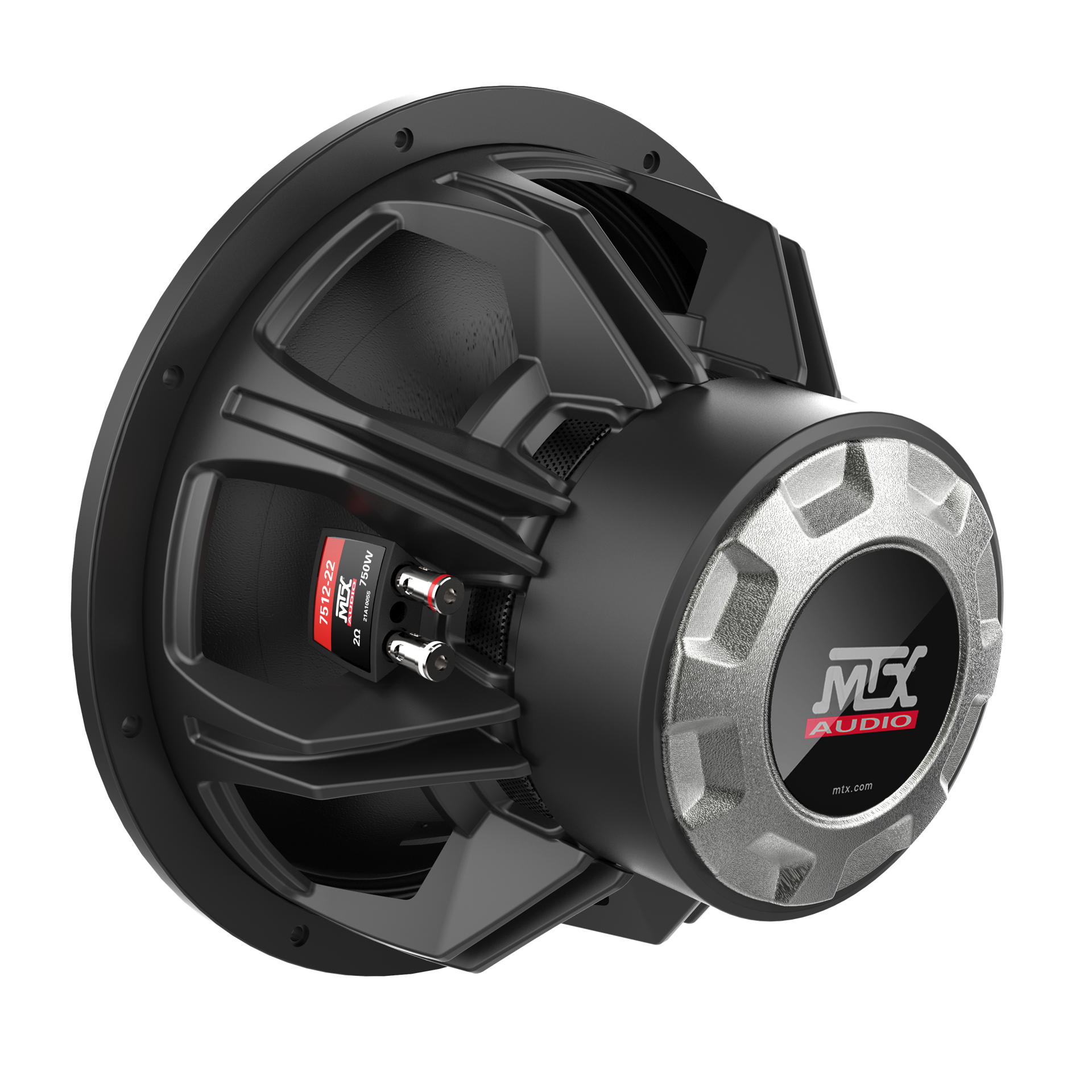

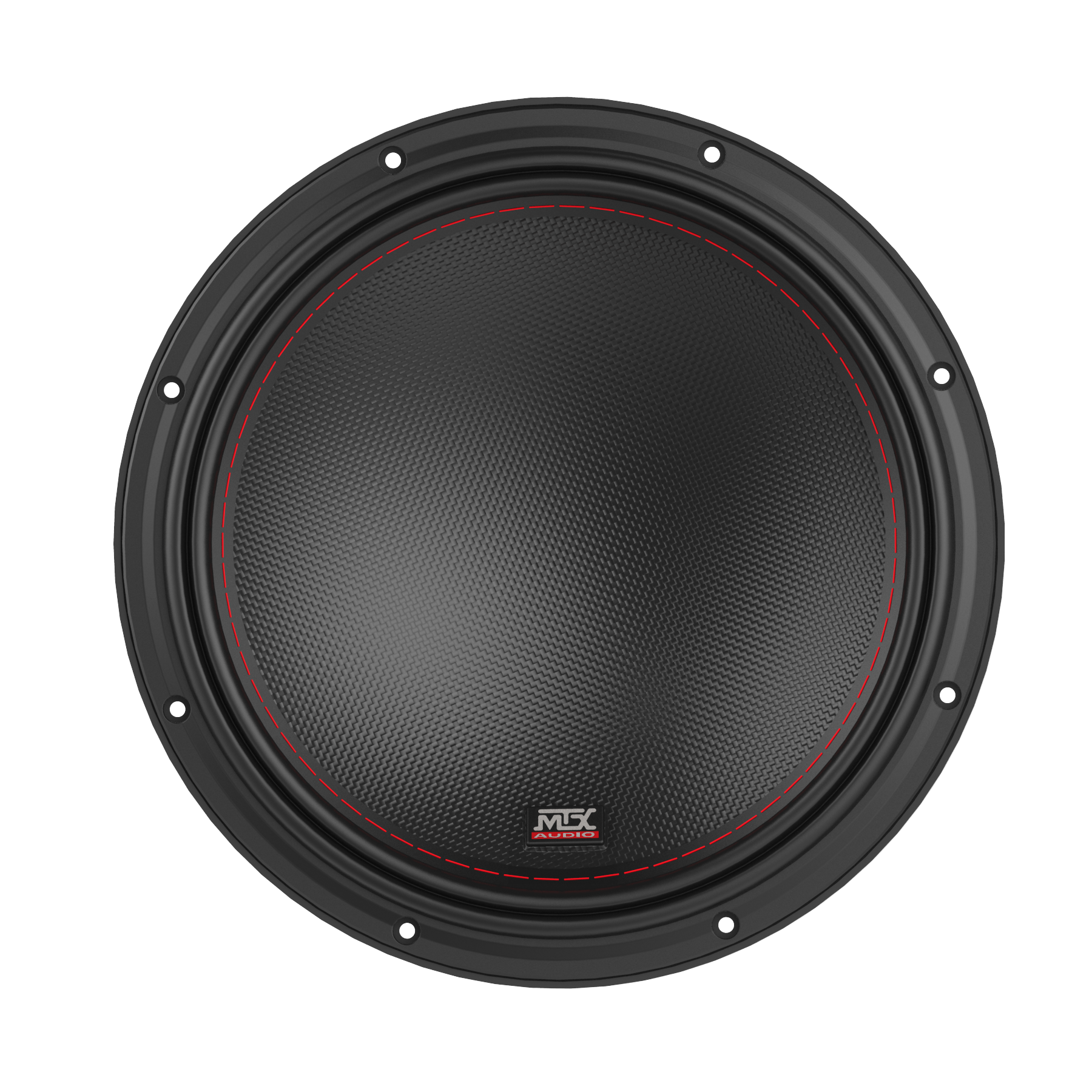

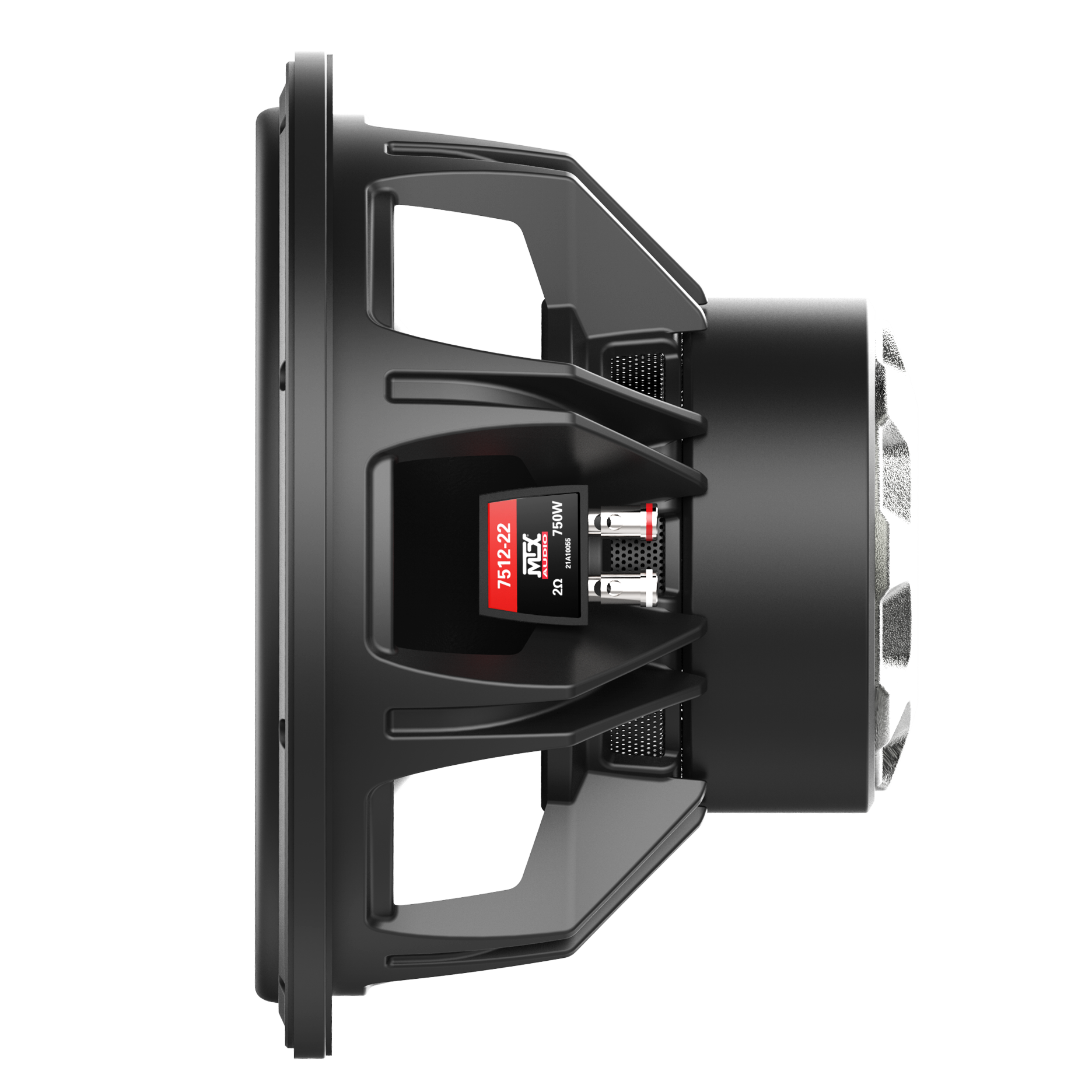

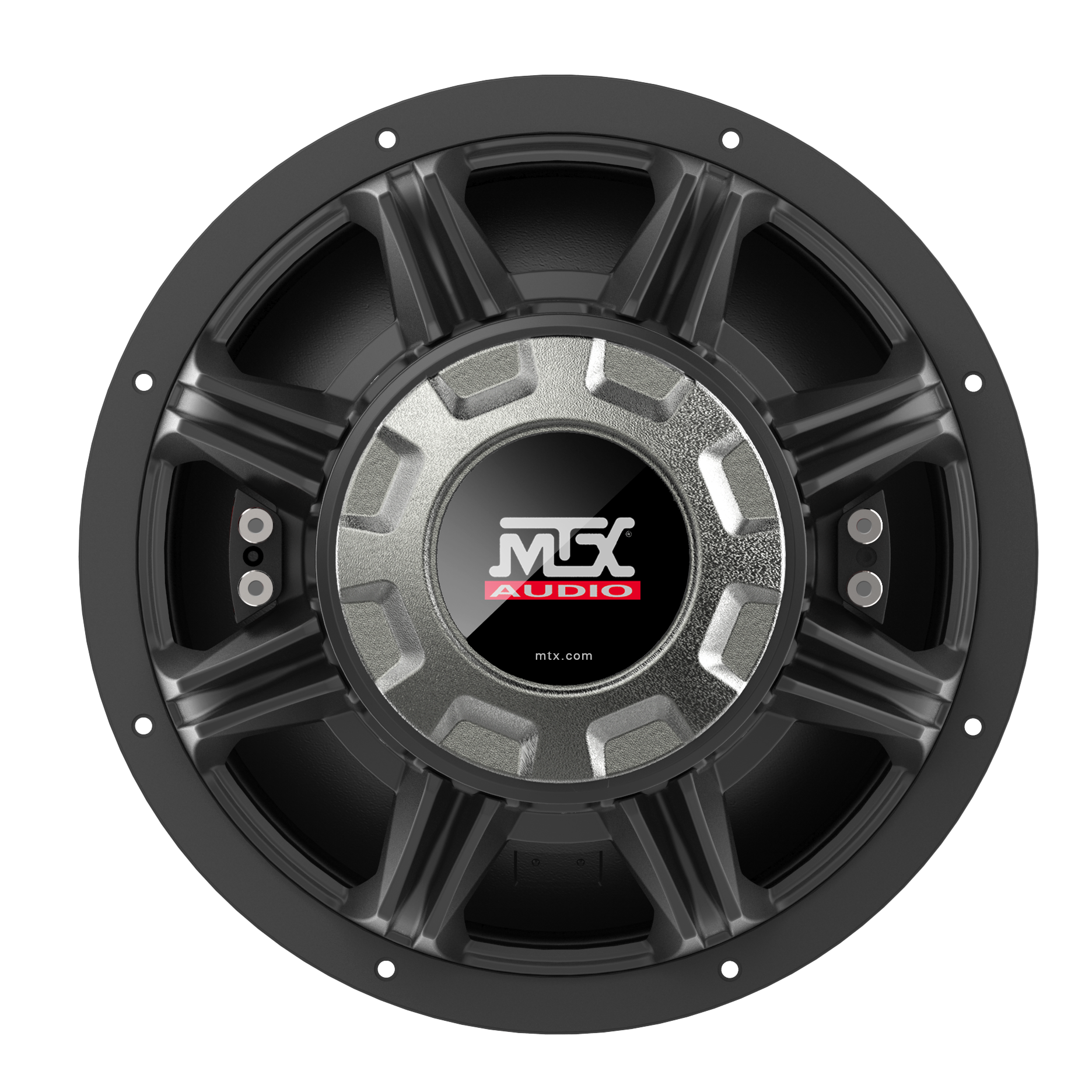

12" 750-Watt RMS Dual 2Ω Car Audio Subwoofer

Availability: In stock

$449.95 MSRP

$419.95

Our 75 Series SuperWoofer has been known for being extremely reliable while it rocks like nobody's business...one of the best in the market. We stepped it up a few notches and have now brought the 75 Series back. Just like the 95 Series, the 75 Series is a "GAME CHANGER" in the SPL world. And sound quality is uncomparable, exceeded by only the MTX 95 Series.

If you compete and want a SuperWoofer that's not only affordable, but reliable, and has been engineered by some of the best in the manufacturing world then get ready to... "PUT SOME THUNDER IN YOUR DOME"!

Ask an expert Find a location

Inverted Apex Surround

The Inverted Apex Surround replaces the older style high roll surround. This new surround design increases effective surface area of the cone by using half the width of an older style surround without sacrificing any excursion. Couple that incredible excursion with increased surface diameter and the result is exponentially increased SPL output.

Cool Under Pressure

Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. The constant movement of hot air out and cooler air in, targeted directly at the high temperature voice coil increases reliability and longetivity.

Radial Ribbed T-Yoke

The specially designed backplate on the 75 Series not only gives it an impressive stance, but acts as an additional medium to conduct heat away from the voice coil. The increased surface area of the backplate dissipates additional heat ensuring the 75 subwoofer plays with lower distortion for extended periods.

All JackHammer SuperWoofers are built to order. Call us at 1-800-225-5689 to order yours today.

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

Dimensions & Details

Dimensions

A - Total Diameter:

12.34" (313.5mm)
B - Driver Diameter:

10.53" (267.5mm)
D - Mounting Depth:

7.43" (188.9mm)
E - Cutout Diameter:

11.13" (282.5mm)

What's in the Box

Subwoofer
Technical Data Sheet

SPECIFICATIONS

Recommended Amp Power (RMS): 375 - 750
Frequency Response: 24Hz - 130Hz
Impedance: Dual 2Ω
Sensitivity: 85.34 dB
Voice Coil: 2.5"
Magnet Weight: 103.4 oz.
Mounting Depth: 7.437"
Cut Out Diameter: 11.125"
Volume Displacement (cu in): 57.49
Sealed Enclosure Net Volume: 1.25 cu ft
Vented Enclosure Net Volume: 2.32 cu ft

Downloads

Data Sheet - 7512-22 Tech Data (2 pages)

View | Download
Test Tone - 50Hzmp3

Download
